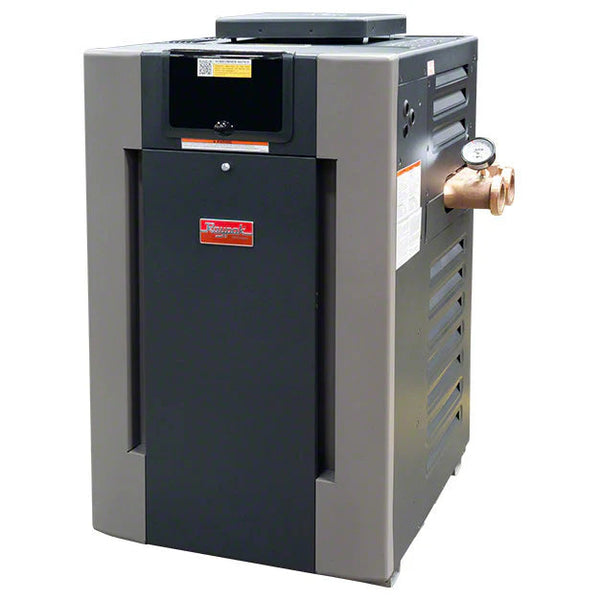

RAYPAK 206A ASME LOW NOX NATURAL GAS POOL & SPA HEATER – 206K BTU, BRONZE HEADERS, CUPRO-NICKEL HEAT EXCHANGER
Model: B-R206A-EN-X #50
Heating Capacity: 206,000 BTU
Fuel Type: Natural Gas
Heat Exchanger: Cupro-Nickel Fin Tube
Header Material: Bronze (ASME)
Ignition Type: Digital Electronic Ignition
Elevation Rating: 0–2,000 Feet
The Raypak B-R206A-EN-X #50 ASME Digital Natural Gas Pool & Spa Heater is the smaller-capacity member of Raypak's commercial ASME heater platform, built for HOAs, apartment complexes, boutique hotels, and demanding residential systems that require certified construction without the largest available BTU size. It delivers a 206,000 BTU input through a premium cupro-nickel fin tube heat exchanger and heavy-duty bronze headers, with digital electronic ignition for fast, dependable heating. Designed for elevations from 0 to 2,000 feet above sea level, it meets the same stringent ASME standards as its larger 266A, 337A, and 407A siblings.
Built with Raypak's rugged polyester-coated galvanized steel cabinet, this heater is designed to withstand harsh outdoor environments while providing years of dependable service. The cupro-nickel heat exchanger offers superior resistance to corrosion from salt, low pH water, and heavy-duty commercial bather loads, while the bronze ASME headers add long-term structural durability under sustained commercial use.
Smart digital controls with an integrated microprocessor-controlled thermostat allow precise temperature management and remote-compatible operation, and the ProTek Shield replaceable module extends heat exchanger life by protecting against galvanic corrosion. The heater is ASME-certified and design-certified to ANSI Z21.56, the national standard for gas-fired pool and spa heaters.
Key Features
- 206,000 BTU cupro-nickel fin tube heat exchanger
- Bronze ASME headers rated for commercial-grade strength
- Digital electronic ignition, no standing pilot
- ProTek Shield replaceable corrosion-protection module
- Smart digital controls with microprocessor-controlled thermostat
- Straight-tube heat exchanger design to reduce friction and simplify service
- Polyester-coated, non-corrosive galvanized steel cabinet
- ASME-certified pressure vessel construction
- Designed for elevations 0–2,000 feet
- Rated for commercial and heavy-use residential applications
- Remote and building automation compatible
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Model | B-R206A-EN-X #50 |
| Fuel Type | Natural Gas |
| BTU Input | 206,000 BTU |
| Heat Exchanger | Cupro-Nickel Fin Tube |
| Header Material | Bronze (ASME) |
| Ignition | Digital Electronic Ignition |
| Controls | Microprocessor-Controlled Digital Thermostat |
| Certification | ASME, ANSI Z21.56 |
| Elevation Rating | 0–2,000 Feet |
| Voltage | 120/240 VAC, 1-Phase |
| Weight | 218 lbs |
| Warranty | 2 Years Parts & Labor |
What's Included
- Raypak B-R206A-EN-X ASME natural gas pool & spa heater
- ProTek Shield corrosion-protection module
- Owner's manual and installation guide
- Manufacturer's limited warranty registration
With ASME-certified construction, a corrosion-resistant cupro-nickel exchanger, and Raypak's proven digital control platform, this heater is a trusted choice for property managers and pool professionals who need commercial-grade reliability at a right-sized BTU output.
Learn more at https://www.raypak.com/products/pool-and-spa/professional-pool-and-spa-heaters/digital-gas-low-nox-asme-pool-spa-heater/
