Pentair Quad D.E.® 100 Sq. Ft. Cartridge Style Pool Filter 188594 – Premium In-Ground Pool Filtration
Dimensions: 21.5" Diameter × 45" Height
The Pentair Quad D.E.® 100 Sq. Ft. Cartridge Style Pool Filter 188594 combines the superior water clarity of diatomaceous earth (D.E.) filtration with the convenience of cartridge-style maintenance. Designed for residential in-ground swimming pools, the Quad D.E. filter captures particles as small as 5 microns, producing exceptionally clear, sparkling water while providing high flow rates and extended cleaning intervals.
Unlike traditional D.E. filters, the Quad D.E. features four large-capacity, easily removable cartridges coated with D.E. media, providing significantly greater filtration surface area and dirt-holding capacity. Its innovative internal flow path maximizes filtration efficiency while the fiberglass-reinforced polypropylene tank delivers exceptional durability and corrosion resistance for years of dependable operation.
Engineered for easy maintenance, the Quad D.E. allows users to backwash like a conventional D.E. filter or simply remove and rinse the cartridge elements when deeper cleaning is required. A High Flow™ manual air relief valve, continuous internal air relief system, and large 1½-inch drain simplify servicing while maintaining efficient filtration performance.
Key Features
- 100 sq. ft. cartridge-style D.E. filtration area
- Filters particles as small as 5 microns

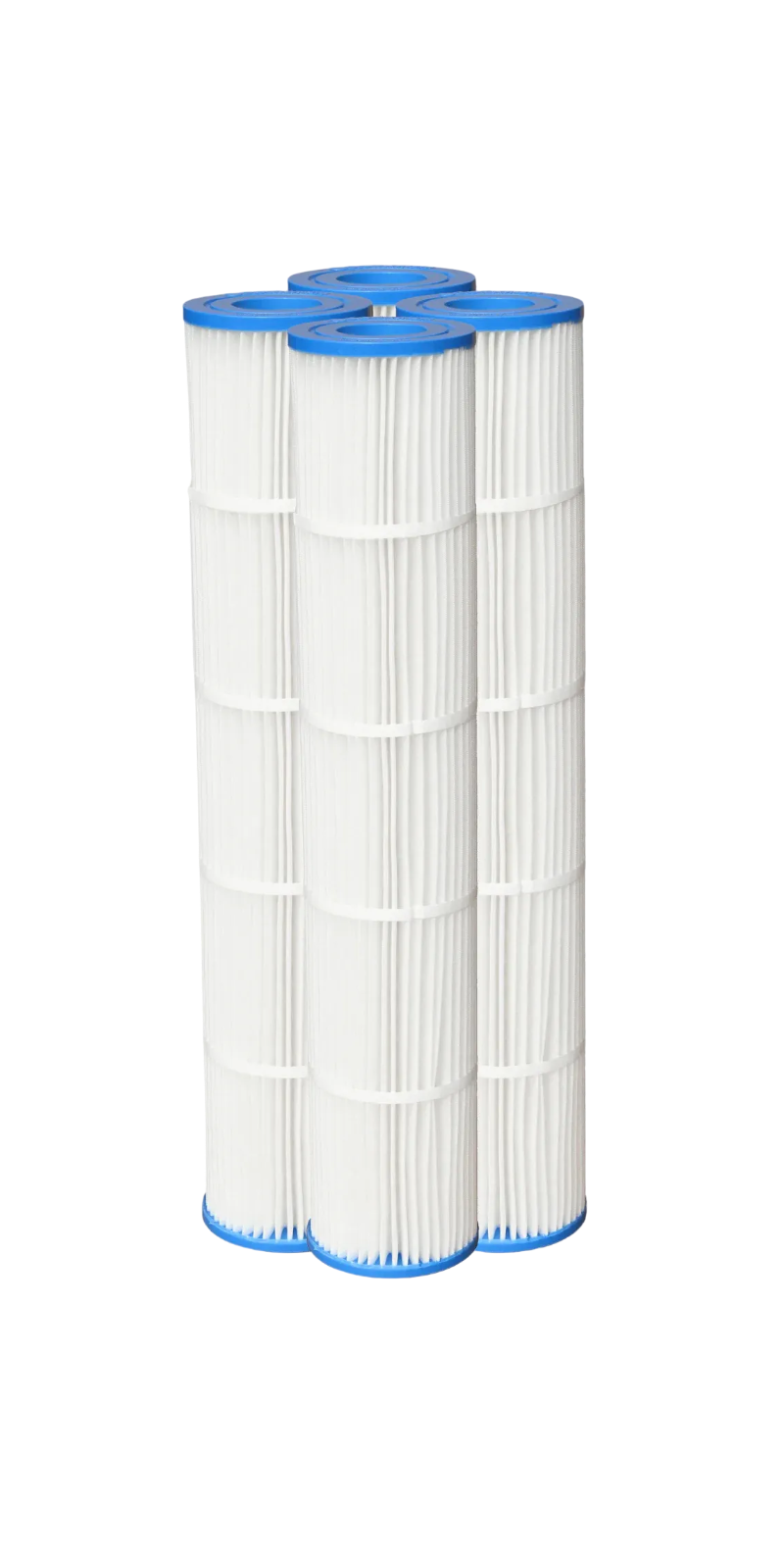

- Four large-capacity D.E. cartridges
- Cartridge convenience with D.E. water clarity
- Fiberglass-reinforced polypropylene tank
- Innovative internal flow path for maximum efficiency
- High Flow™ manual air relief valve
- Continuous internal air relief system
- Durable woven polypropylene cartridge media
- Chemical- and corrosion-resistant construction
- Easy cartridge removal for simplified maintenance
- 2-inch plumbing connections
- NSF/ANSI Standard 50 Certified
- Suitable for residential in-ground pools
- Backwash valve sold separately
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Model | Quad D.E.® 100 |
| Part Number | 188594 |
| Filter Type | Cartridge Style D.E. Filter |
| Filtration Area | 100 Sq. Ft. |
| Maximum Flow Rate | 150 GPM |
| Pool Type | In-Ground Pools |
| Tank Material | Fiberglass-Reinforced Polypropylene |
| D.E. Required | 10 lbs. |
| Maximum Operating Pressure | 50 PSI |
| Plumbing Connections | 2 Inch |
| Dimensions | 21.5" Diameter × 45" Height |
| Certification | NSF/ANSI Standard 50 |
What's Included
- Pentair Quad D.E.® 100 Sq. Ft. Filter Tank – 188594
- Four D.E. Cartridge Elements
- High Flow™ Manual Air Relief Valve
- Clamp Assembly
- Drain Assembly
- Plumbing Adapters
- Owner's Manual
The Pentair Quad D.E.® 188594 is trusted by homeowners and pool professionals seeking the exceptional water clarity of D.E. filtration with the convenience of removable cartridge elements. Its high-capacity four-cartridge design reduces maintenance frequency while delivering outstanding filtration performance, making it an ideal solution for medium to large residential swimming pools.
Learn more at Pentair.
