Model: IntelliBrite Architectural Series 120V Spa Light – Warm White / Turtle
Part Number/SKU: 602227
Application: Spa
Voltage: 120V
Wattage: 18W
Light Type: LED
Light Color: Warm White (Pentair 'Warm White / Turtle' assembly)
Cord Length: 100 ft (30.5 m)
Face Ring: Stainless steel face ring (Pentair Architectural Series brochure, series-level)
Niche Type: Niche-mounted – Pentair niches only
Compatibility: Pentair niches only; Pentair automation systems, Color Sync Controller, Pentair Pool app

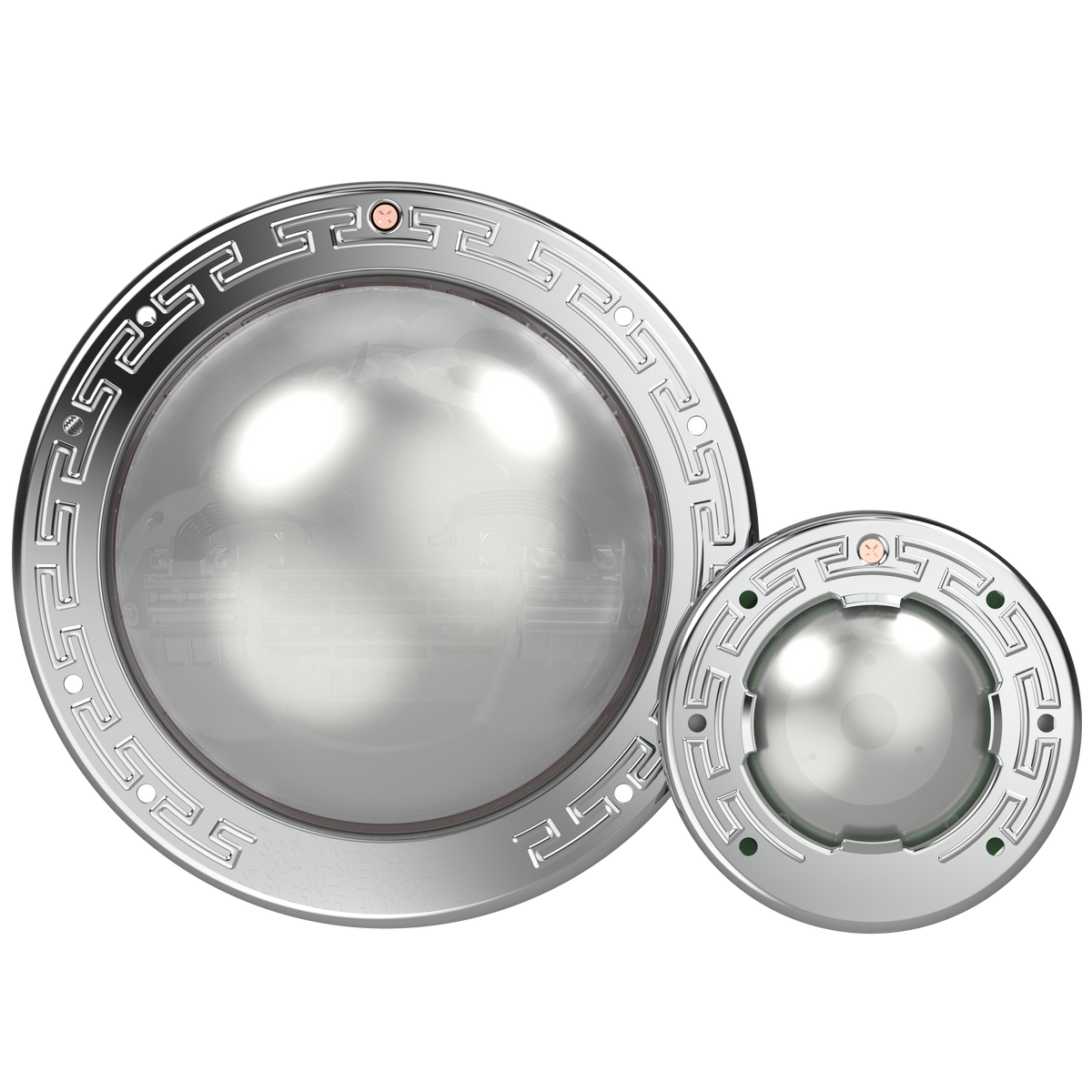

The Pentair IntelliBrite Architectural Series 602227 is the 120-volt, 18-watt warm white spa light from Pentair's Architectural Series, supplied with a 100-foot cord. Pentair's manual and catalog list this assembly as the 120V Spa Light – Warm White / Turtle, the amber-leaning white option in the line that is also used where wildlife-friendly lighting is wanted. It is the compact spa-size fixture, not the larger pool light.

The Architectural Series is Pentair's successor to IntelliBrite 5G. Pentair states the series is 60 percent brighter and 50 percent more energy efficient than its predecessor and is engineered to spread light widely and evenly to minimize hot spots, dark areas, glare and stripes. The series is certified to UL 676 and CSA C22.2 No. 89. Being a 120V fixture, it must be wired to a GFCI-protected circuit; no low-voltage transformer is involved.

Installation is niche-mounted, and Pentair is explicit that the light must only be used in Pentair niches – installing it in another manufacturer's niche voids the UL approval and the warranty. Where local code requires a cord seal, Pentair specifies its plastic niches 79206600 / 79206700 with Cord Seal Kit 670044. Pentair lists the light as compatible with its automation systems and light controllers, the Color Sync Controller and the Pentair Pool app. Spa replacement parts published by Pentair include Face Ring Kit 79111600, Lens Kit 602176, Gasket Kit 79108600z and Wire Clamp Kit 79210400.

Pentair's published warranty for IntelliBrite Architectural Series pool and spa lights is two years.

Key Features

• Warm white LED spa light, 120V, 18W, 100 ft cord
• Pentair 'Warm White / Turtle' assembly for a softer, amber-leaning white
• Architectural Series: 60% brighter and 50% more efficient than IntelliBrite 5G (Pentair)
• Wide, even light spread that minimizes hot spots, glare and stripes
• Certified to UL 676 and CSA C22.2 No. 89
• For installation in Pentair niches only; requires a GFCI-protected 120V circuit
• Works with Pentair automation systems, Color Sync Controller and the Pentair Pool app
• 2-year Pentair warranty

Specifications

What's Included

• IntelliBrite Architectural Series 120V warm white spa light with 100 ft cord
• Not included: niche, junction box, cord seal kit, automation or controller equipment

The 602227 is the choice for a 120-volt spa on a Pentair niche where you want a warm, low-glare white rather than color-changing output, with enough cord to reach a junction box 100 feet away.
