Model: IntelliBrite Architectural Series 12V Spa Light – Multi-Color
Part Number/SKU: 602200
Application: Spa
Voltage: 12V (safety isolation transformer required, not included)
Wattage: 18W
Light Type: LED
Light Color: Color-changing LED – 5 fixed colors (blue, green, red, white, magenta) and 7 light shows (SAm, Party, Romance, Caribbean, American, California Sunset, Royal)
Cord Length: 150 ft
Face Ring: Stainless steel face ring (Pentair Architectural Series brochure, series-level)
Niche Type: Niche-mounted – Pentair spa niches only
Compatibility: Pentair niches only; Pentair automation systems, Color Sync Controller, Pentair Pool app

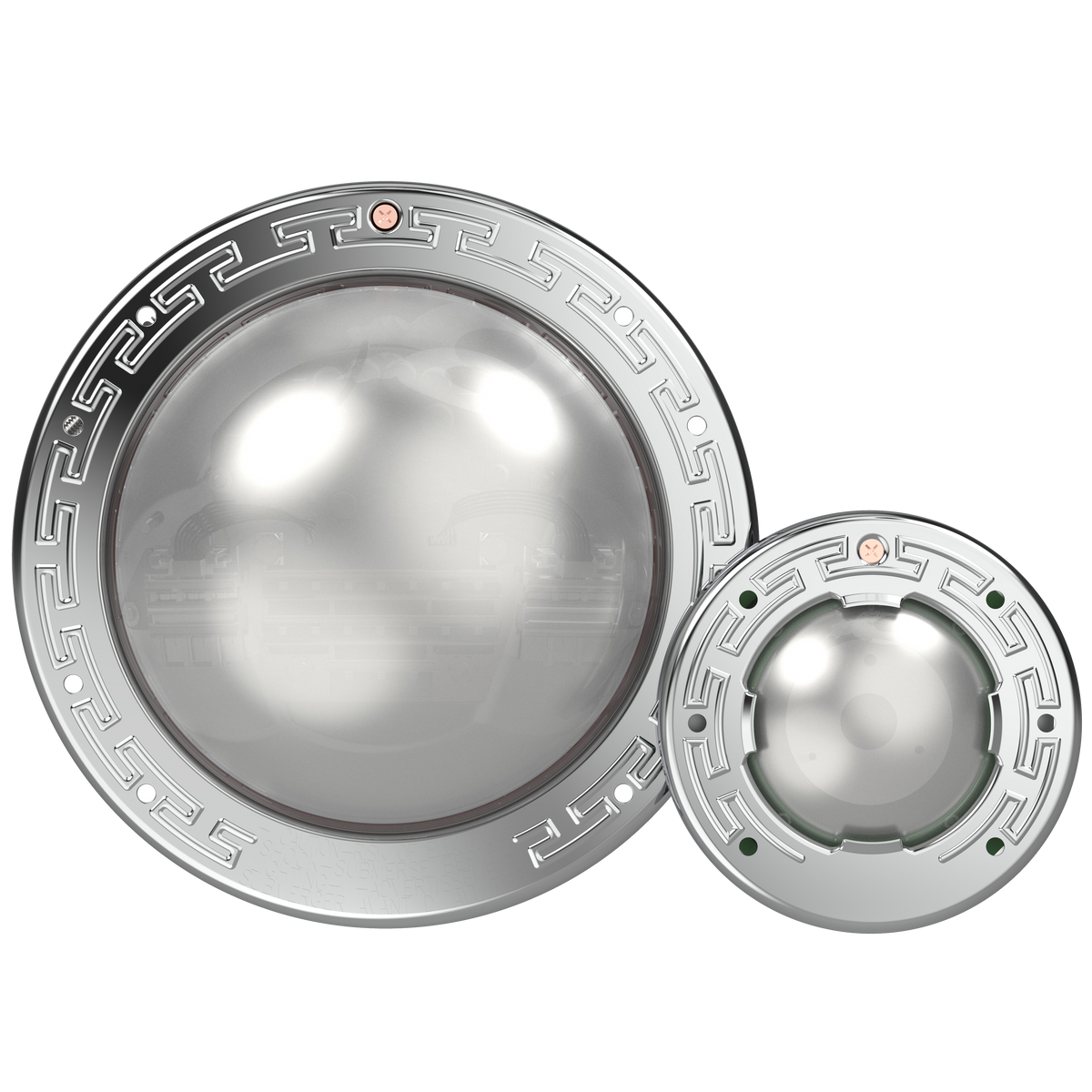

The Pentair IntelliBrite Architectural Series 602200 is the 12V, 18W multi-color spa light from Pentair's Architectural Series, supplied with a 150-foot cord. It is the compact spa-size fixture for a Pentair spa (6-inch class) niche. Pentair's cross-reference grid lists it as the Architectural Series replacement for the discontinued IntelliBrite 5G 640133, so it is the current part to specify when one of those lights needs replacing.

Output is color-changing LED with five fixed colors (blue, green, red, white and magenta) and seven pre-programmed light shows (SAm, Party, Romance, Caribbean, American, California Sunset and Royal), selected from the light switch or a Pentair automation system. Pentair states the Architectural Series is 60 percent brighter and 50 percent more energy efficient than the IntelliBrite 5G it replaces, and that its optics spread light widely and evenly in all directions to minimize hot spots, dark areas, glare and stripes. The series is certified to UL 676 and CSA C22.2 No. 89.

Installation is niche-mounted, and Pentair is explicit that the light must only be used in Pentair niches – installing it in another manufacturer's niche voids the UL approval and the warranty. Where local code requires a cord seal, Pentair specifies its plastic niches 79206600 / 79206700 with Cord Seal Kit 670044. As a 12-volt luminaire it must be powered through a safety isolation transformer, which is not included. Pentair lists the light as compatible with its automation systems and light controllers, the Color Sync Controller and the Pentair Pool app. Replacement parts published by Pentair for the spa light are Face Ring Kit 79111600, Lens Kit 602176, Gasket Kit 79108600z and Wire Clamp Kit 79210400.

Pentair's published warranty for IntelliBrite Architectural Series pool and spa lights is two years.

Key Features

• Multi-Color LED spa light, 12V, 18W, 150 ft cord
• 5 fixed colors and 7 color-changing light shows
• 60% brighter and 50% more efficient than IntelliBrite 5G (Pentair)
• Wide, even light spread that minimizes hot spots, glare and stripes
• Certified to UL 676 and CSA C22.2 No. 89
• For Pentair niches only; requires a safety isolation transformer (not included)
• Works with Pentair automation systems, Color Sync Controller and the Pentair Pool app
• Pentair-listed replacement for IntelliBrite 5G 640133
• 2-year Pentair warranty

Specifications

What's Included

• IntelliBrite Architectural Series 12V multi-color spa light with 150 ft cord
• Not included: niche, junction box, cord seal kit, safety isolation transformer, automation or controller equipment

The 602200 is the current Pentair part for a 12V multi-color spa light in a Pentair niche with a 150-foot cord run, and the direct Architectural Series successor to IntelliBrite 5G 640133.
