Pentair Clean & Clear® Plus 420 Cartridge Pool Filter 160301 – High-Capacity In-Ground Pool Filtration
Dimensions: 22.5" Diameter × 49" Height
The Pentair Clean & Clear® Plus 420 Cartridge Pool Filter 160301 delivers exceptional water clarity and high-capacity filtration for residential in-ground swimming pools. Featuring four large polyester cartridge elements and a 420-square-foot filtration area, the Clean & Clear® Plus provides superior dirt-holding capacity while eliminating the need for backwashing. Its fiberglass-reinforced polypropylene tank is engineered for outstanding strength, corrosion resistance, and years of dependable performance.
Designed for maximum efficiency, the CCP420 utilizes balanced hydraulic flow to distribute water evenly across all four cartridge elements, maximizing filtration performance while reducing pressure loss. The Continuous High Flow™ internal air relief system and High Flow™ manual air relief valve help maintain efficient operation and improve overall system performance. With no backwashing required, routine maintenance is as simple as removing and rinsing the cartridges with a garden hose, saving both water and time.
Rated for 150 GPM with a 420-square-foot filtration area, the Clean & Clear® Plus 420 is ideal for medium to large residential pools requiring outstanding water clarity and long cleaning cycles. The durable injection-molded tank, Tension Control™ clamp, and 2-inch plumbing connections provide reliable operation and easy installation for new or replacement pool filtration systems.
Key Features
- 420 sq. ft. effective cartridge filtration area
- Four high-capacity polyester filter cartridges
- No backwashing required
- Fiberglass-reinforced polypropylene tank
- Balanced hydraulic flow for maximum filtration efficiency
- Continuous High Flow™ internal air relief system
- High Flow™ manual air relief valve
- Tension Control™ clamp for quick service access
- Large dirt-holding capacity for longer cleaning cycles
- 2-inch plumbing connections
- Chemical- and corrosion-resistant construction
- Easy cartridge removal for simple maintenance
- NSF/ANSI Standard 50 Certified
- Suitable for residential in-ground pools
- Saves water by eliminating backwashing
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Model | Clean & Clear® Plus CCP420 |
| Part Number | 160301 |
| Filter Type | Cartridge Filter |
| Filtration Area | 420 Sq. Ft. |
| Maximum Flow Rate | 150 GPM |
| Pool Type | In-Ground Pools |
| Filter Cartridges | 4 Polyester Cartridges |
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Maximum Operating Pressure | 50 PSI |
| Maximum Water Temperature | 104°F (40°C) |
| Plumbing Connections | 2 Inch |
| Dimensions | 22.5" Diameter × 49" Height |
| Certification | NSF/ANSI Standard 50 |
What's Included
- Pentair Clean & Clear® Plus 420 Cartridge Filter Tank – 160301

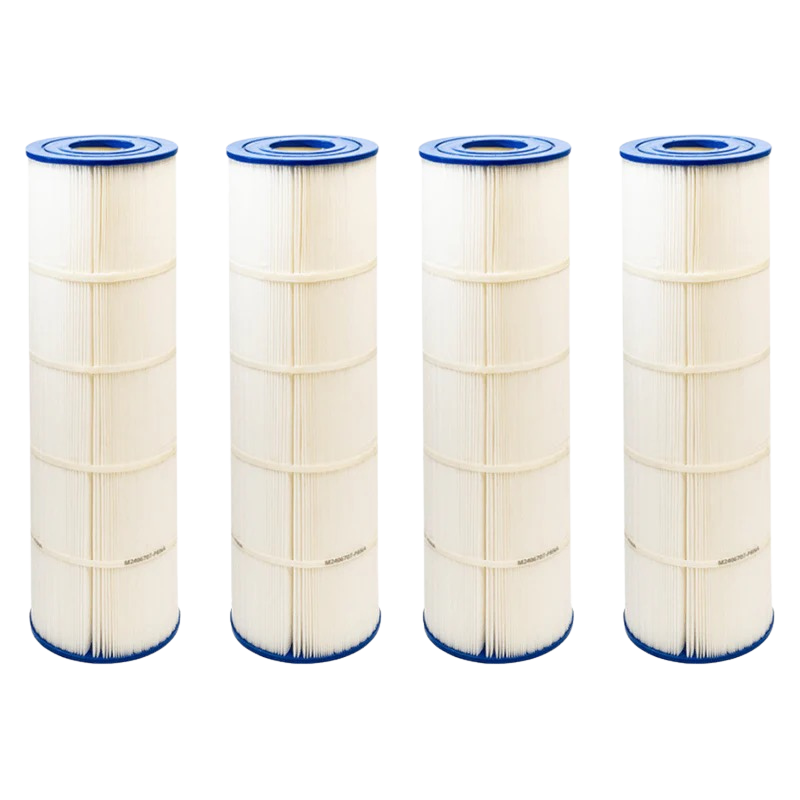

- Four Polyester Filter Cartridges
- High Flow™ Manual Air Relief Valve
- Tension Control™ Clamp Assembly
- Two 2" Union Connections
- Drain Assembly
- Owner's Manual
The Pentair Clean & Clear® Plus 420 (160301) is trusted by homeowners and pool professionals for its outstanding filtration performance, water-saving cartridge design, and low-maintenance operation. Its large filtration area, durable construction, and efficient four-cartridge system provide crystal-clear water with longer cleaning intervals, making it an excellent choice for medium to large residential swimming pools.
Learn more at Pentair.
