Model: WaterColors Nicheless LED Light with HydroCool, RGBW, 6W, 150 ft
Part Number/SKU: JLU4C6W150
Application: Pool & Spa – also wet areas within 10 ft (6W)
Voltage: 12V AC (12–14 VAC Class 2 magnetic transformer required, not included)
Wattage: 6W
Light Type: LED
Light Color: RGBW – 9 fixed colors and 5 light shows (14 modes, Jandy WaterColors sequence)
Cord Length: 150 ft
Face Ring: Black body; white and gray cosmetic trim rings included
Niche Type: Nicheless – standard 1-1/2 in plastic wall/return fitting (not included); minimum 7 in pipe
Compatibility: 1-1/2 in return fitting; AquaLink relay

The Jandy JLU4C6W150 is a 6W, 12-volt RGBW color-changing nicheless LED light from Jandy's WaterColors nicheless line with HydroCool technology, supplied with a 150-foot cord. Nicheless means it threads into a standard 1-1/2 inch plastic wall or return fitting (not included) with the included installation tool – no light niche, and because the light is 100 percent non-metallic no bonding is required. Jandy's manual calls for a minimum 7 in of 1-1/2 inch pipe through the wall for the 6W light, and the fixture is only 4-1/2 in long. Jandy allows only the 6 W models for wet-area lighting within 10 feet of a pool or spa, which makes this the light for steps, tanning ledges, spas and small water features.

It is the standard WaterColors version: fourteen modes selected by power-cycling the switch or relay – nine fixed colors (Alpine White, Sky Blue, Cobalt Blue, Caribbean Blue, Spring Green, Emerald Green, Emerald Rose, Magenta, Violet) and five shows (Slow Color Splash, Fast Color Splash, America the Beautiful, Fat Tuesday, Disco Tech) – with memory that returns to the last mode after a power interruption. Jandy color lights are not dimmable. HydroCool uses the surrounding water to keep the LED running cooler for longer life, and Jandy states the lights use up to 87 percent less energy than incandescent pool lights.

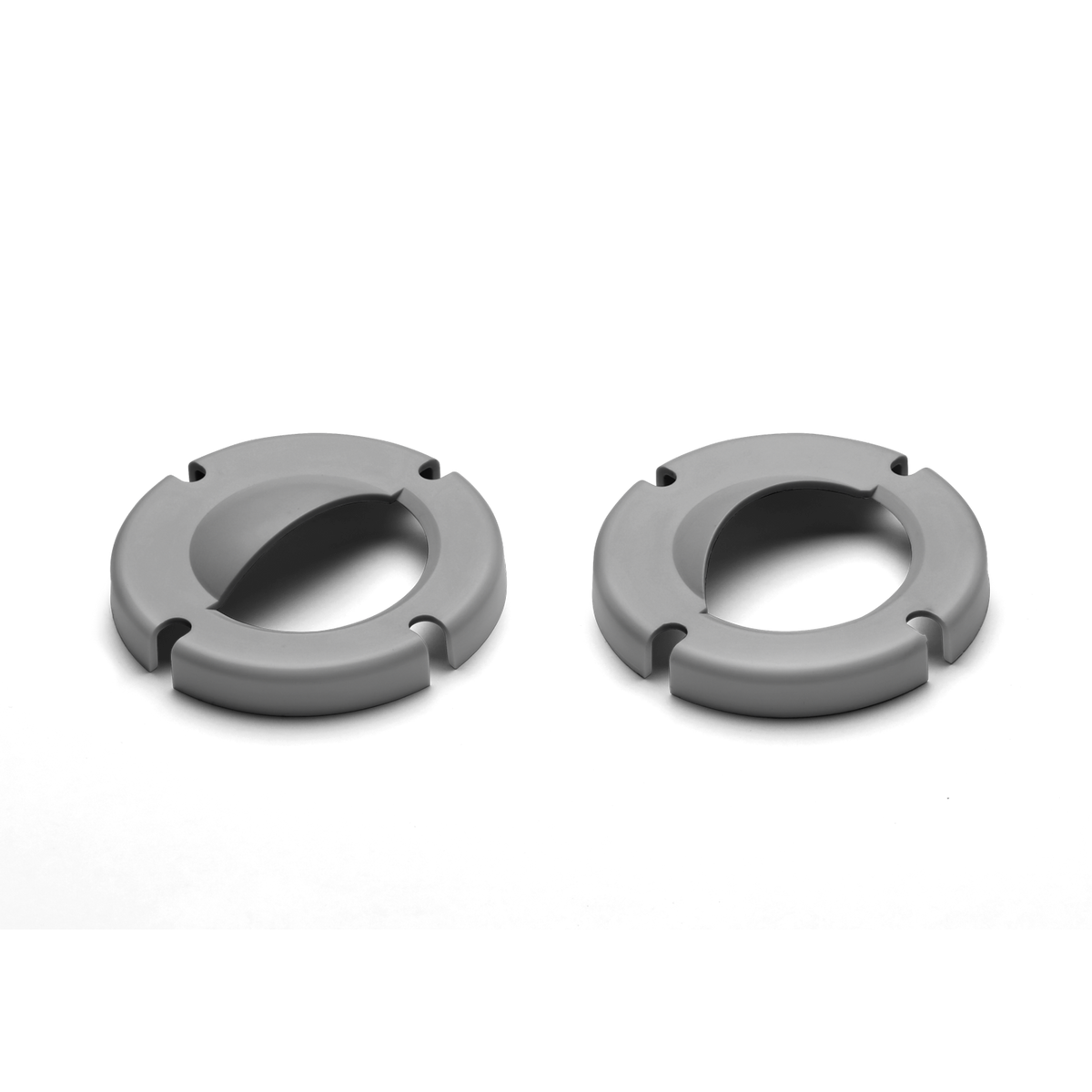

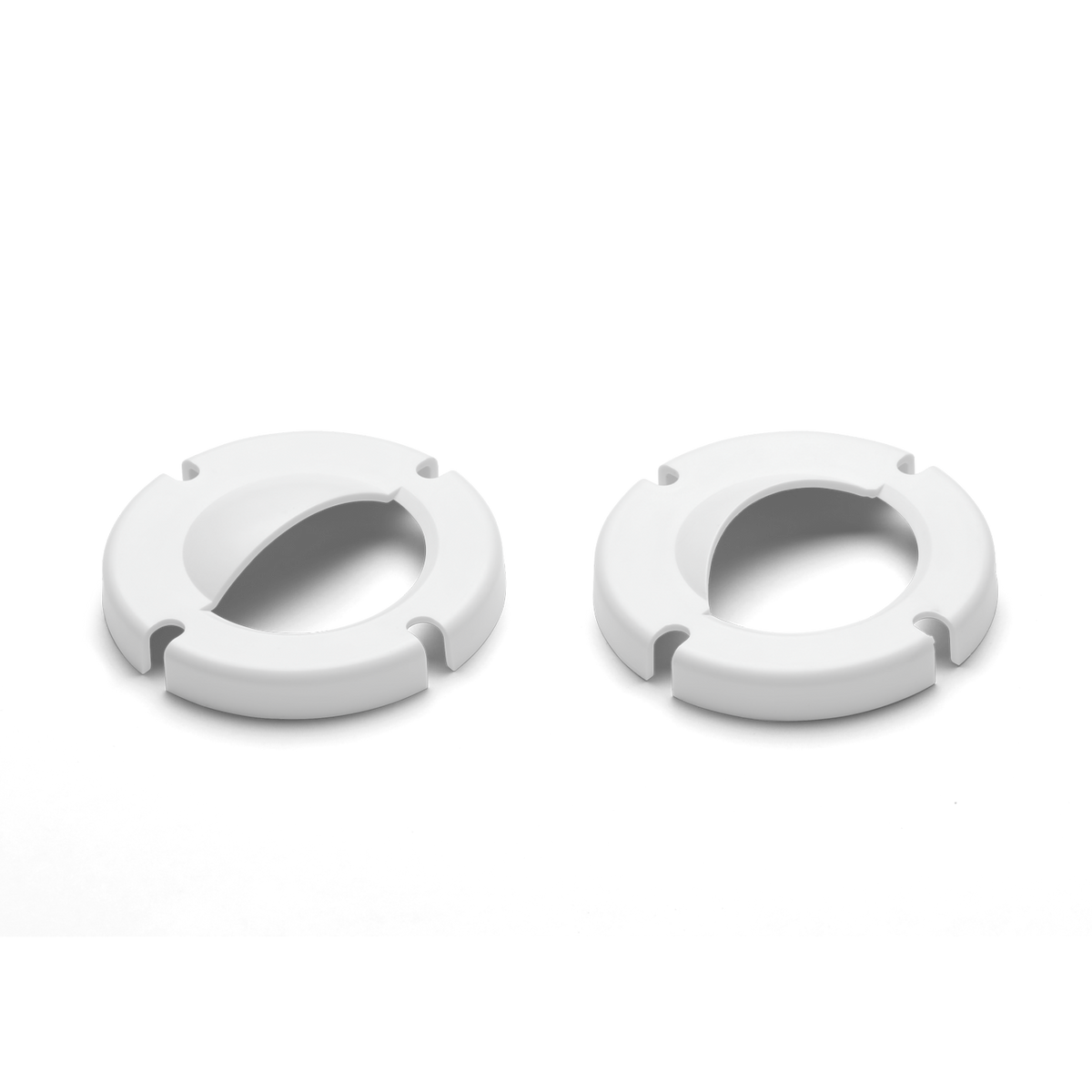

Power is 12 VAC from a separate NRTL-listed Class 2 magnetic pool transformer (12–14 VAC), not included; Jandy's manual gives operating voltage ranges at the light by cord length and cautions not to exceed the transformer's load rating. Any Jandy AquaLink auxiliary relay can switch the transformer to control the light. The carton includes white and gray cosmetic trim rings; Jandy's quarter-moon and half-moon lens covers, which redirect light away from the eyes on steps, are available as lens cover kits in white, gray and black. Jandy's warranty document covers nicheless underwater lights for three years.

Key Features

• 6W RGBW nicheless LED, 12V, 150 ft cord
• Standard WaterColors sequence: 9 colors and 5 shows
• Only wattage Jandy approves within 10 ft of a pool or spa for wet-area lighting
• Threads into a standard 1-1/2 in return fitting – no niche, no bonding (min. 7 in pipe)
• HydroCool technology for cooler running and longer life; up to 87% energy savings (Jandy)
• Compact 4-1/2 in fixture; white and gray trim rings included
• Requires a separate 12–14 VAC Class 2 magnetic transformer; switchable from any AquaLink relay
• 3-year Jandy warranty (nicheless lights)

Specifications

What's Included

• Jandy nicheless LED light with 150 ft cord
• Protective cover, white and gray cosmetic trim rings, installation tool, guide (per Jandy manual)
• Not included: 1-1/2 in wall fitting, 12V transformer, junction box, automation

The JLU4C6W150 is the nicheless 6W choice for steps, ledges, spas and wet areas on a 12-volt transformer circuit, with a 150-foot cord back to the junction box.
