Model: WaterColors Nicheless LED Light with HydroCool, RGBW, 24W, 100 ft
Part Number/SKU: JLU4C24W100
Application: Pool & Spa
Voltage: 12V AC (12–14 VAC Class 2 magnetic transformer required, not included)
Wattage: 24W
Light Type: LED
Light Color: RGBW – 9 fixed colors and 5 light shows (14 modes, Jandy WaterColors sequence)
Cord Length: 100 ft
Face Ring: Black body; white and gray cosmetic trim rings included
Niche Type: Nicheless – standard 1-1/2 in plastic wall/return fitting (not included); minimum 10 in pipe
Compatibility: 1-1/2 in return fitting; AquaLink relay

The Jandy JLU4C24W100 is a 24W, 12-volt RGBW color-changing nicheless LED light from Jandy's WaterColors nicheless line with HydroCool technology, supplied with a 100-foot cord. Nicheless means it threads into a standard 1-1/2 inch plastic wall or return fitting (not included) with the included installation tool – no light niche, and because the light is 100 percent non-metallic no bonding is required. Jandy's manual calls for a minimum 10 in of 1-1/2 inch pipe through the wall for the 24W light, and the fixture is only 5-1/2 in long. It suits pools, spas and water features where a compact light with meaningful output is wanted.

It is the standard WaterColors version: fourteen modes selected by power-cycling the switch or relay – nine fixed colors (Alpine White, Sky Blue, Cobalt Blue, Caribbean Blue, Spring Green, Emerald Green, Emerald Rose, Magenta, Violet) and five shows (Slow Color Splash, Fast Color Splash, America the Beautiful, Fat Tuesday, Disco Tech) – with memory that returns to the last mode after a power interruption. Jandy color lights are not dimmable. HydroCool uses the surrounding water to keep the LED running cooler for longer life, and Jandy states the lights use up to 87 percent less energy than incandescent pool lights.

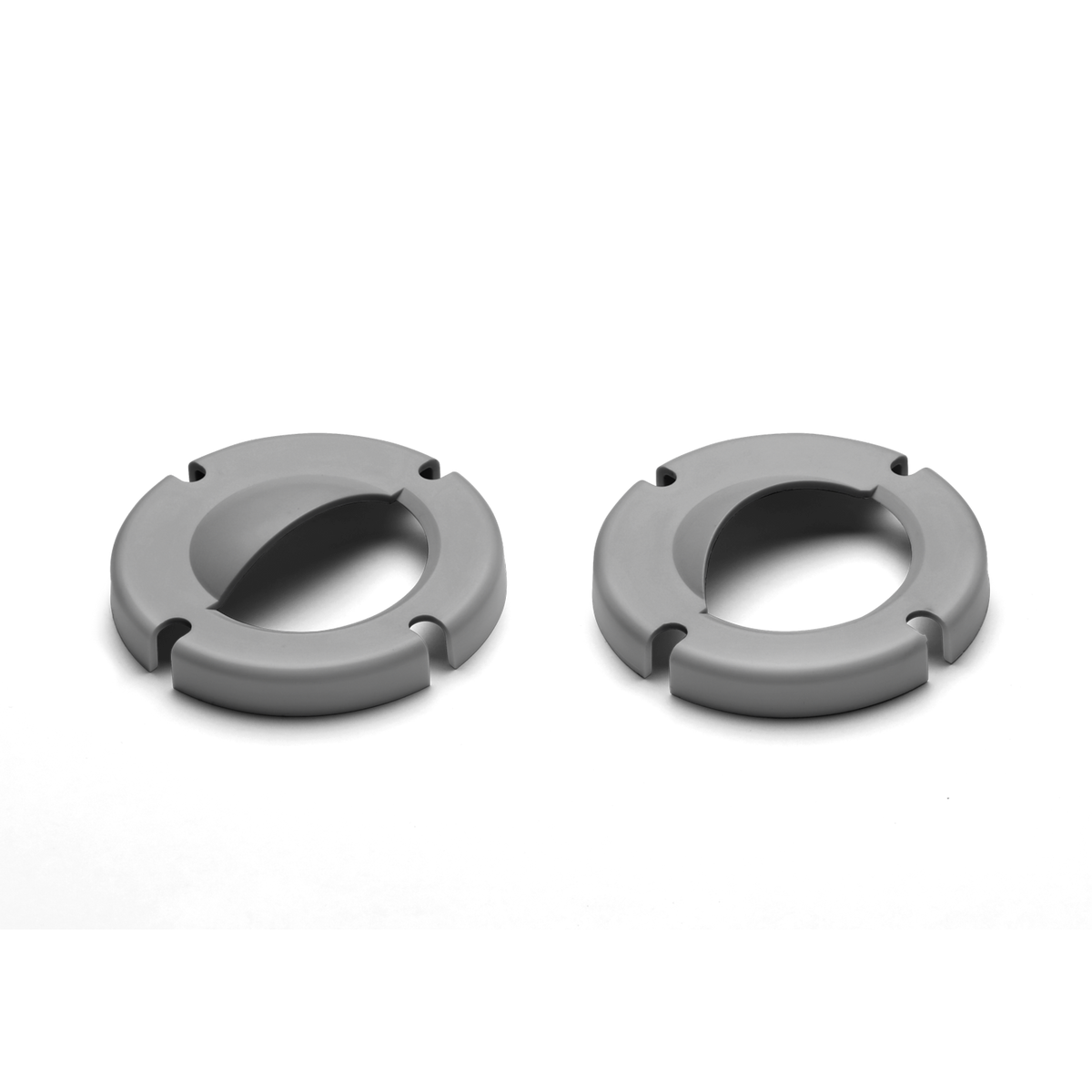

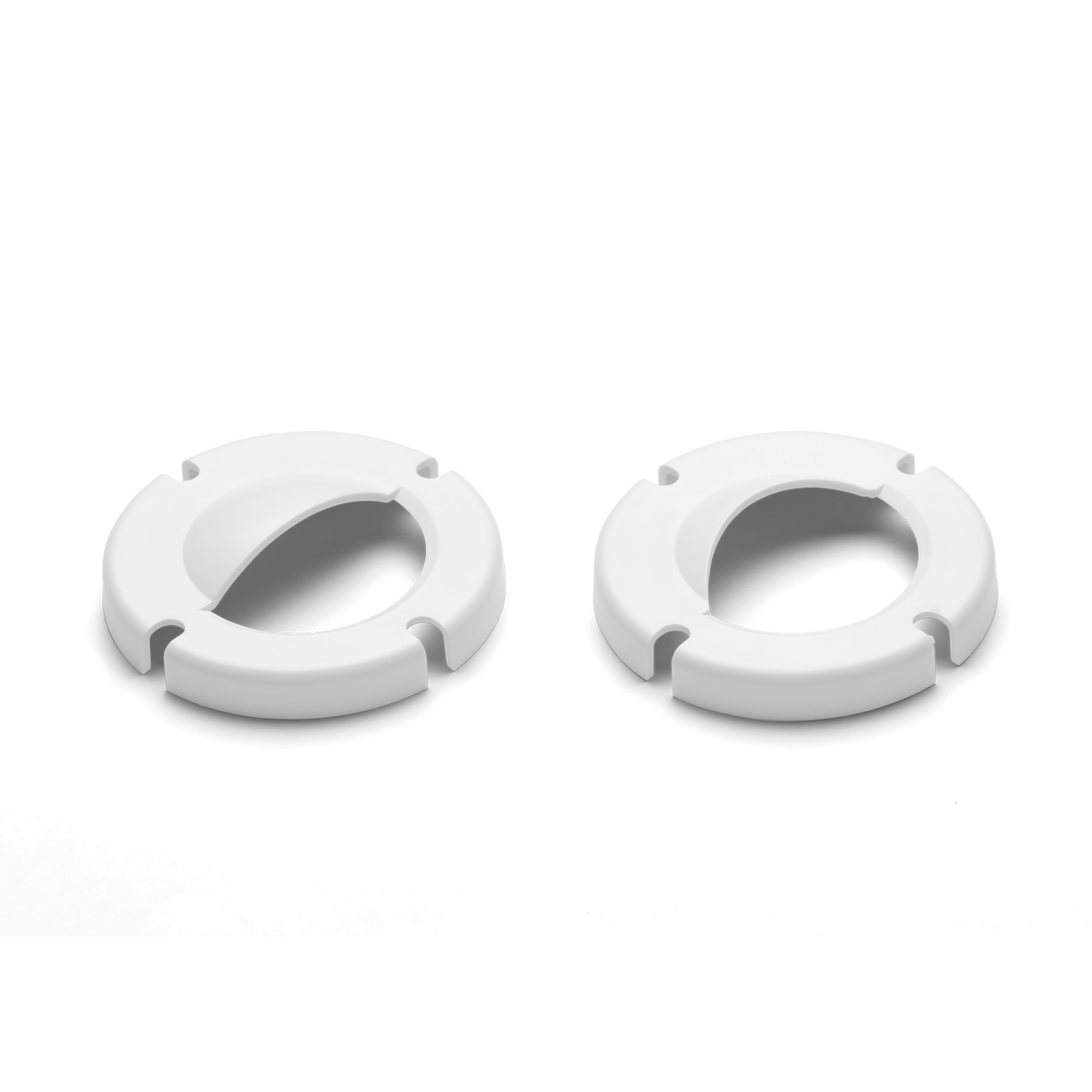

Power is 12 VAC from a separate NRTL-listed Class 2 magnetic pool transformer (12–14 VAC), not included; Jandy's manual gives operating voltage ranges at the light by cord length and cautions not to exceed the transformer's load rating. Any Jandy AquaLink auxiliary relay can switch the transformer to control the light. The carton includes white and gray cosmetic trim rings; Jandy's quarter-moon and half-moon lens covers, which redirect light away from the eyes on steps, are available as lens cover kits in white, gray and black. Jandy's warranty document covers nicheless underwater lights for three years.

Key Features

• 24W RGBW nicheless LED, 12V, 100 ft cord
• Standard WaterColors sequence: 9 colors and 5 shows
• Threads into a standard 1-1/2 in return fitting – no niche, no bonding (min. 10 in pipe)
• HydroCool technology for cooler running and longer life; up to 87% energy savings (Jandy)
• Compact 5-1/2 in fixture; white and gray trim rings included
• Requires a separate 12–14 VAC Class 2 magnetic transformer; switchable from any AquaLink relay
• 3-year Jandy warranty (nicheless lights)

Specifications

What's Included

• Jandy nicheless LED light with 100 ft cord
• Protective cover, white and gray cosmetic trim rings, installation tool, guide (per Jandy manual)
• Not included: 1-1/2 in wall fitting, 12V transformer, junction box, automation

The JLU4C24W100 is the nicheless 24W choice for pools, spas and features on a 12-volt transformer circuit, with a 100-foot cord back to the junction box.
