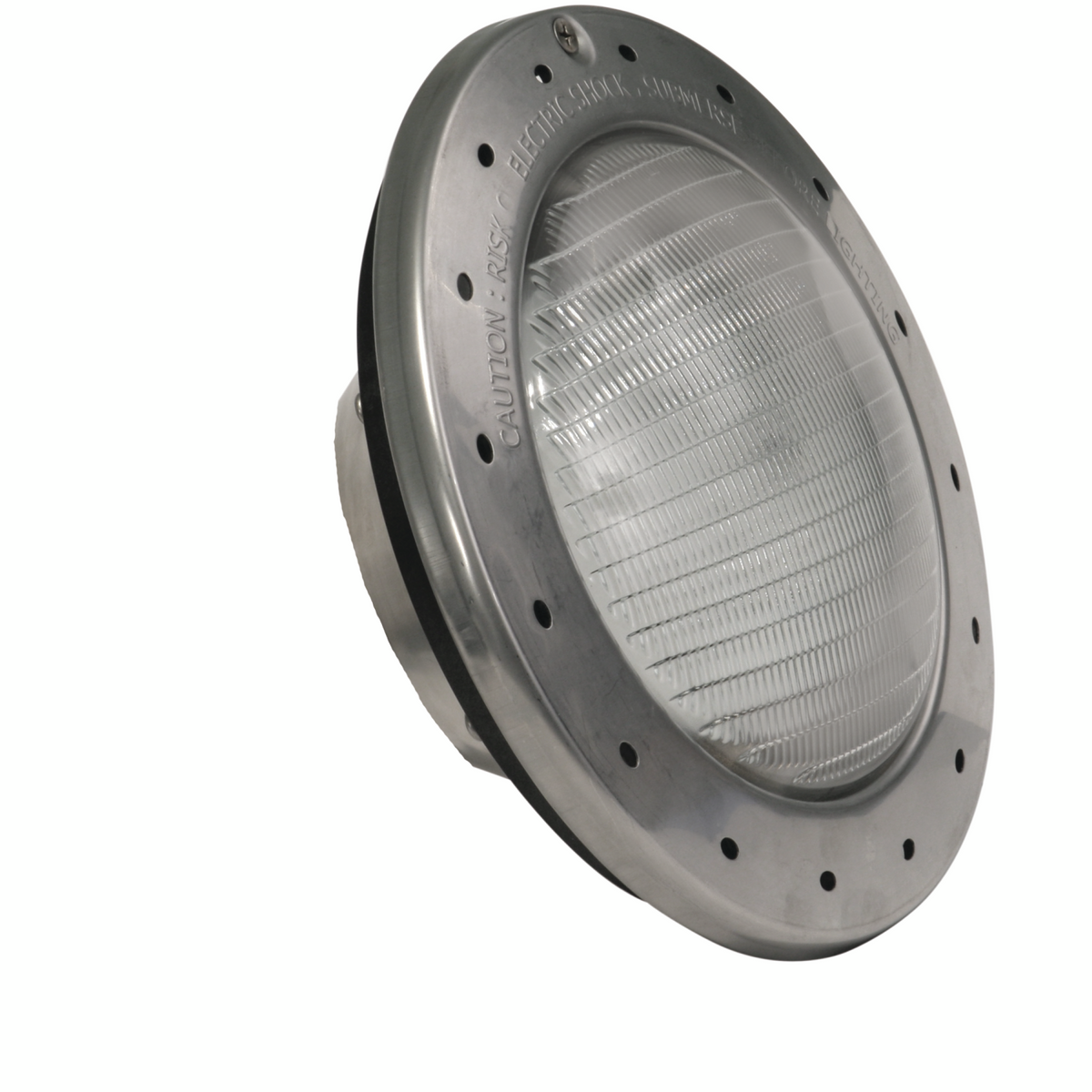

JANDY PRO SERIES WPHV3LS150 DAYLIGHT WHITE LED POOL LIGHT – 120V, 42W, 5000K, 150 FT CORD, STAINLESS STEEL FACE RING
Model: Pro Series White LED Large Pool Light – Daylight White, 120V, 150 ft
Part Number/SKU: WPHV3LS150
Application: Pool
Voltage: 120V AC
Wattage: 42W
Light Type: LED
Light Color: Daylight White, 5000K, 2798 lumens (300W incandescent equivalent)
Cord Length: 150 ft
Face Ring: Stainless steel face ring and housing
Niche Type: Large wet niche
Compatibility: Jandy ProNiche and listed Pentair/Hayward large niches; AquaLink RS / iAquaLink (on/off)
The Jandy Pro Series WPHV3LS150 is the 120V, 42W daylight white LED pool light from Jandy's White LED line, with a 150-foot cord and a stainless steel face ring. The part number decodes as W for daylight white, P for the large pool fixture, HV for 120-volt, 42L for the output class, S for stainless and 150 for the cord. Jandy's cut sheet rates it at 2798 lumens at 5000K and its sell sheet equates it to a 300W incandescent light while using about 85 percent less energy.
It is an on/off white light – Jandy's manual is explicit that the White LED lights will not operate properly on dimmers – controlled from a single light switch or wired into a Jandy AquaLink RS system (up to four lights per relay recommended) and operated remotely through iAquaLink. Being 120-volt it needs no transformer. The corrosion-resistant stainless steel housing and face ring are ETL listed for Jandy ProNiches and the listed Pentair and Hayward large niches, so it drops into most existing pool niches during a renovation.
Jandy's standard limited warranty for this niched light is one year from retail purchase; the three-year term in Jandy's warranty document applies only to its nicheless underwater lights. Jandy does not publish dimensions or box contents for this model.
Key Features
- Daylight White LED pool light, 120V, 42W, 5000K, 2798 lumens – 300W incandescent equivalent
- 150 ft factory cord
- Stainless steel housing and face ring; ETL listed
- Fits Jandy ProNiche and listed Pentair and Hayward large niches
- AquaLink RS / iAquaLink compatible (on/off); not for dimmer circuits
- Uses about 85% less energy than incandescent (Jandy)
- No transformer required (120V)
Specifications
| Specification | Details |
|---|---|
| Brand | Jandy |
| Part Number/SKU | WPHV3LS150 |
| Model | Pro Series White LED Large Pool Light – Daylight White, 120V, 150 ft |
| Product Type | White LED Underwater Pool Light (Large) |
| Application | Pool |
| Voltage | 120V AC |
| Wattage | 42W |
| Light Technology | LED |
| Light Color | Daylight White, 5000K, 2798 lumens (300W incandescent equivalent) |
| Cord Length | 150 ft |
| Face Ring / Finish | Stainless steel face ring and housing |
| Niche Type | Large wet niche |
| Niche Compatibility | Jandy PLNICLRG, PLNICVFLRG, WT000002, SSNICLRG1R, SSNICLRG1S; Pentair 620004, 78210200–78210700, 78210401; Hayward DuraNiche SP0600U (Jandy manual H0621300) |
| Automation Compatibility | Jandy AquaLink RS (wired, up to 4 lights per relay), iAquaLink, or a single light switch; on/off only – not dimmable |
| Warranty | 1 year Jandy Limited Warranty (niched light) |
What's Included
- Jandy White LED large pool light with 150 ft cord and stainless steel face ring
- Not included: niche, junction box
Choose the WPHV3LS150 for a 120V daylight white pool light that fits an existing Jandy, Pentair or Hayward large niche and switches from AquaLink, with a 150-foot cord to the equipment pad.
Learn more at Jandy:
https://www.jandy.com/en/products/pool-lights/niched-lighting/white-led-pool-and-spa-lights
