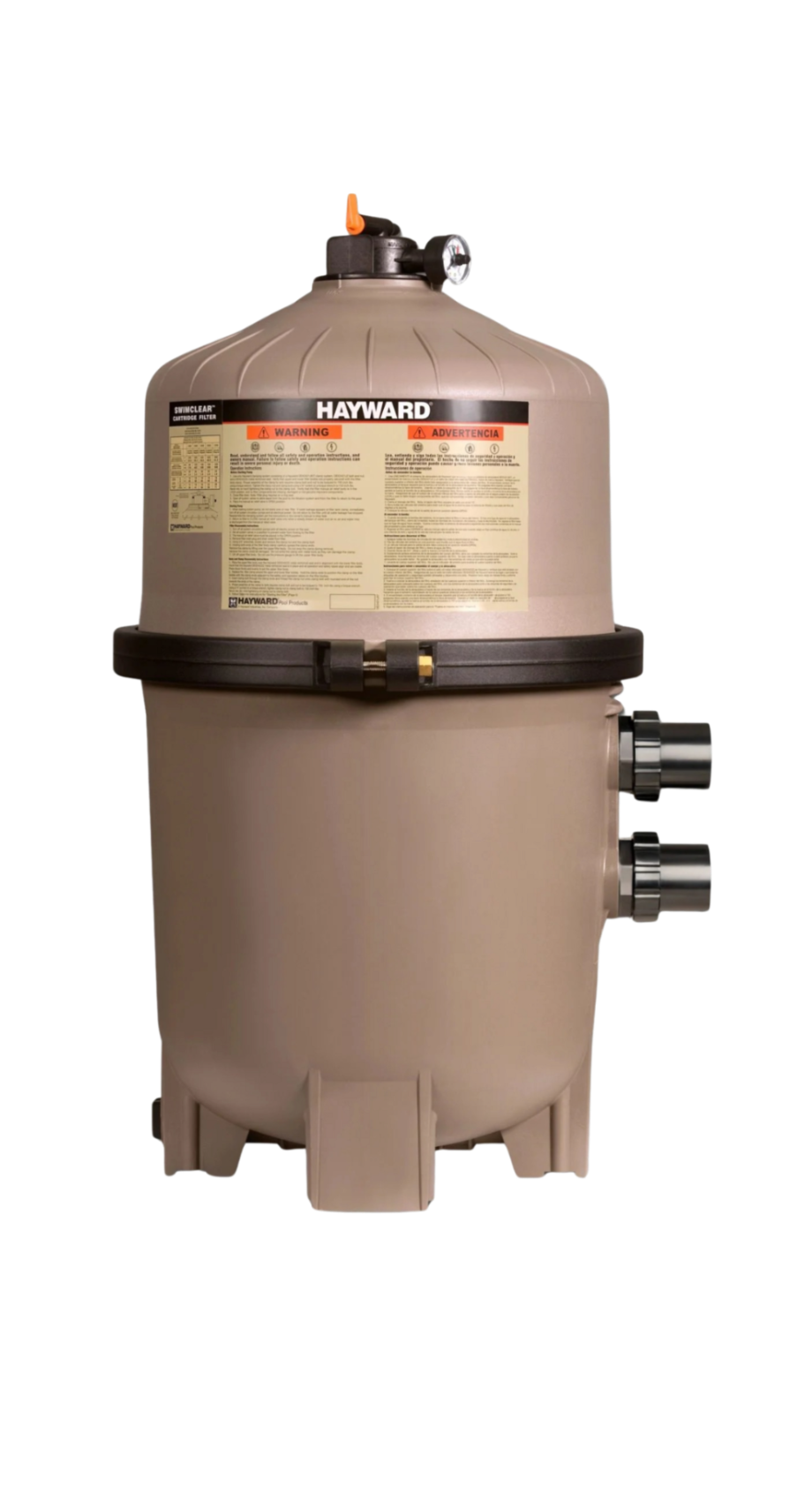

Hayward ProGrid® D.E. Pool Filter DE4820 – Premium In-Ground Pool Filtration
Filter Size: 48 Sq. Ft.
Dimensions: 24.6" W × 23.1" D × 41.8" H
The Hayward ProGrid® D.E. Pool Filter DE4820 delivers exceptional water clarity with the superior filtration performance of diatomaceous earth (D.E.) technology. Designed for residential in-ground swimming pools, the DE4820 captures particles as small as 3–5 microns, producing sparkling, crystal-clear water while maintaining excellent hydraulic efficiency and extended cleaning cycles. Its durable PermaGlass XL™ filter tank provides outstanding corrosion resistance and long-lasting performance in even the most demanding pool environments.
Engineered with Hayward's advanced vertical grid design, the ProGrid® maximizes filtration area while reducing flow resistance for improved system efficiency. The precision-molded filter tank, durable polypropylene grid elements, and tamper-proof one-piece flange clamp make servicing quick and straightforward. A built-in automatic air relief system and manual air relief valve help maintain proper filtration performance while simplifying startup and maintenance.
Rated for 96 GPM with a 48-square-foot filtration area, the DE4820 is an excellent choice for small to medium-sized residential pools seeking professional-grade filtration performance. Its high dirt-holding capacity extends the time between cleanings while delivering consistently clear water throughout the swimming season.
Key Features
- 48 sq. ft. D.E. filtration area
- Filters particles as small as 3–5 microns
- Durable PermaGlass XL™ filter tank
- Vertical grid filtration design
- High dirt-holding capacity
- Automatic internal air relief system
- Manual air relief valve
- One-piece flange clamp for easy servicing
- Corrosion- and UV-resistant construction
- Efficient hydraulic flow design
- Suitable for residential in-ground pools
- NSF listed
- Compatible with Hayward VariFlo® multiport or slide valves (sold separately)
Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Model | ProGrid® DE4820 |
| Part Number | DE4820 |
| Filter Type | Diatomaceous Earth (D.E.) |
| Filtration Area | 48 Sq. Ft. |
| Maximum Flow Rate | 96 GPM |
| Pool Type | In-Ground Pools |
| Tank Material | PermaGlass XL™ |
| D.E. Required | 6 lbs. |
| Maximum Working Pressure | 50 PSI |
| Plumbing Connections | 2 Inch |
| Dimensions | 24.6" W × 23.1" D × 41.8" H |
| Certification | NSF Listed |
What's Included
- Hayward ProGrid® D.E. Filter Tank – DE4820

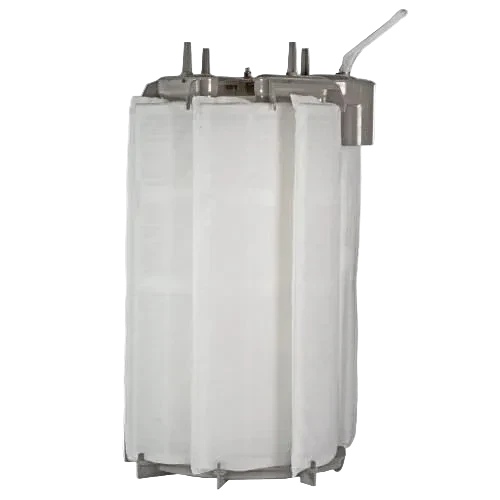

- Complete Vertical Grid Assembly
- Manual Air Relief Assembly
- Pressure Gauge
- Drain Assembly
- Clamp Assembly
- Owner's Manual
The Hayward ProGrid® DE4820 is trusted by homeowners and pool professionals for its outstanding filtration performance, durable construction, and easy maintenance. Its high-capacity vertical grid design delivers exceptional water clarity, long cleaning cycles, and reliable operation, making it an excellent choice for residential in-ground pools that demand premium D.E. filtration.
Learn more at Hayward.
